SQL Server Machine Learning Services in Production

Kevin Feasel (@feaselkl)
http://CSmore.info/on/mlservices

Who Am I? What Am I Doing Here?

Catallaxy Services
Curated SQL
PolyBase Revealed

@feaselkl

What is ML Services?

SQL Server Machine Learning Services (ML Services) was originally released as SQL Server R Services with SQL Server 2016.

Since then, Microsoft added support for Python in SQL Server 2017 and renamed the product accordingly.

With SQL Server 2019, Microsoft has added Java support as well and has opened the door to other languages too.

Motivation

My goals in this talk:

  • Introduce you to SQL Server Machine Learning Services.
  • Explain principles for managing external packages and deploying custom code.
  • Show the security models available for ML Services.
  • Provide tips on managing Machine Learning Services.

Agenda

  1. Installing ML Services
  2. Installing Packages
  3. Code Management
  4. Security and Roles
  5. Managing ML Services
  6. General Tips

Start a New Installation

Select ML Services

Enable External Scripts

Restart the Launchpad

Once you have enabled external scripts, be sure to restart the Launchpad service. To be safe, you might want to restart the SQL Server service as well.

Agenda

  1. Installing ML Services
  2. Installing Packages
  3. Code Management
  4. Security and Roles
  5. Managing ML Services
  6. General Tips

Package Management

There are several techniques for installing packages in R and Python. Key factors in deciding what to do are:

  • Which SQL Server Version?
  • Do you have internet access?
  • Do you prefer easier options or more feature-rich options?
  • Do you require central management of many instances?

sqlmlutils

The sqlmlutils package allows you to install R or Python code remotely. This is the best way to install packages for SQL Server 2019 (R or Python) or 2017 (R only).

R / Python Console

If you have administrative access to the machine running SQL Server, you can open up the R console and run install.packages() in the console. Similarly, you can run pip install from the command line for Python.

By default, the R console is installed in the MSSQL{##}.{MSSQLSERVER}\R_SERVICES\bin folder, and pip.exe is installed in the MSSQL{##}.{MSSQLSERVER}\PYTHON_SERVICES\Scripts\ folder.

Create External Library

The CREATE EXTERNAL LIBRARY requires GRANT ALTER ANY EXTERNAL LIBRARY and allows you to install a package from a zip file.

miniCran

For locked-down corporate environments, install the miniCRAN packages and create your own repository. Pull packages from CRAN or MRAN as desired. Then, use one of the prior options to install packages, pointing to this miniCRAN server as your source.

sp_execute_external_script

You can execute scripts using sp_execute_external_script. This includes install.packages().

This technique does not work well for SQL Server 2019.

rxInstallPackages

The rxInstallPackages function is Microsoft's function for safe installation of packages. It is a potential replacement for install.packages(), adding the ability to install pakages into per-database, per-user repositories. You can call it via sp_execute_external_script as well for versions prior to SQL Server 2019.

Offline Options

If your SQL Servers have no outbound Internet connectivity, you can still manage packages.

One option is to set up a SQL Server with outbound access, install packages on it, and then copy the Library folder to your other instances.

Another option is to download zip files of your desired packages (and their dependencies) and run install.packages or rxInstallPackages to install these zipped binaries.

Use This When:

  • sqlmlutils: start with this for 2019, or for R packages in 2017.
  • Console: "complex" packages (e.g., Keras in R) or cases when sqlmlutils fails to load a package from a repository.
  • CREATE EXTERNAL LIBRARY: cases when sqlmlutils fails to load a custom package.
  • miniCran: R package installation in offline corporate environments.
  • sp_execute_external_script and rxInstallPackages: SQL Server 2016 (R) or SQL Server 2017 (Python).
  • Offline installation: Python in SQL Server 2017.

Demo Time

Agenda

  1. Installing ML Services
  2. Installing Packages
  3. Code Management
  4. Security and Roles
  5. Managing ML Services
  6. General Tips

Where Code Belongs

Putting small snippets of code in text as part of a call to sp_execute_external_script is fine, but as your code gets more complex, it becomes much harder to maintain for the same reasons dynamic SQL is hard to maintain.

The best option is to segregate your R or Python code from your SQL workflows as much as possible, akin to how dependency injection separates external resources from internal code.

R Packages

Instead of storing all of your code in SQL queries, create a reference library with your code. This offers a few benefits:

  1. Development using R Studio is easier for your data scientists.
  2. Debugging R code is much easier outside of SQL Server.
  3. Packages allow you to maintain R code history better than procedures.

Demo Time

Isolate External Script Calls

Create wrapper procedures to call the external script procedures. This allows you to call your R or Python code within SQL Server but without any permanent results. Doing this is critical for troubleshooting code oddities.

Storing Models

When working with R, there are a few places we can store models and other binaries:

  1. Wrapped up as files in an R package.
  2. On the file system of your server.
  3. Inside SQL Server.

Each comes with its own benefits and drawbacks.

Updating Code Packages

Using the package model for your custom R code allows you to perform updates with ease: simply deploy the new zip file to the server and install the package. Your code must not be running at the time (or else you will find the library locked), so this may be a little tricky for especially long-running processes.

For third-party libraries, update.packages() will update all packages. Using one of the controlled package management techniques is best here.

Agenda

  1. Installing ML Services
  2. Installing Packages
  3. Code Management
  4. Security and Roles
  5. Managing ML Services
  6. General Tips

Executing Scripts

Users who wish to execute external scripts will need the GRANT EXECUTE ANY EXTERNAL SCRIPT permission. Alternatively, the user may be in the db_owner database role or the sysadmin server role.

Role-Based Access Control

SQL Server has a rich set of role-based access controls around things such as:

  1. Reading from or writing to specific tables
  2. Executing external scripts
  3. Installing packages
  4. Executing stored procedures
  5. Running predictions with PREDICT or sp_rxPredict

Each comes with its own benefits and drawbacks.

Agenda

  1. Installing ML Services
  2. Installing Packages
  3. Code Management
  4. Security and Roles
  5. Managing ML Services
  6. General Tips

Upgrading R or Python

SQL Server ships with specific versions of R and Python. If you wish to upgrade, you will need to bind a new version of Microsoft Machine Learning Server to SQL Server.

There are a few steps to binding. These instructions are for SQL Server 2017; 2016 had its own process which differed a bit from 2017.

Download ML Server

Bind to SQL Server

Accept License Terms

Accept R Open License

Accept Anaconda License

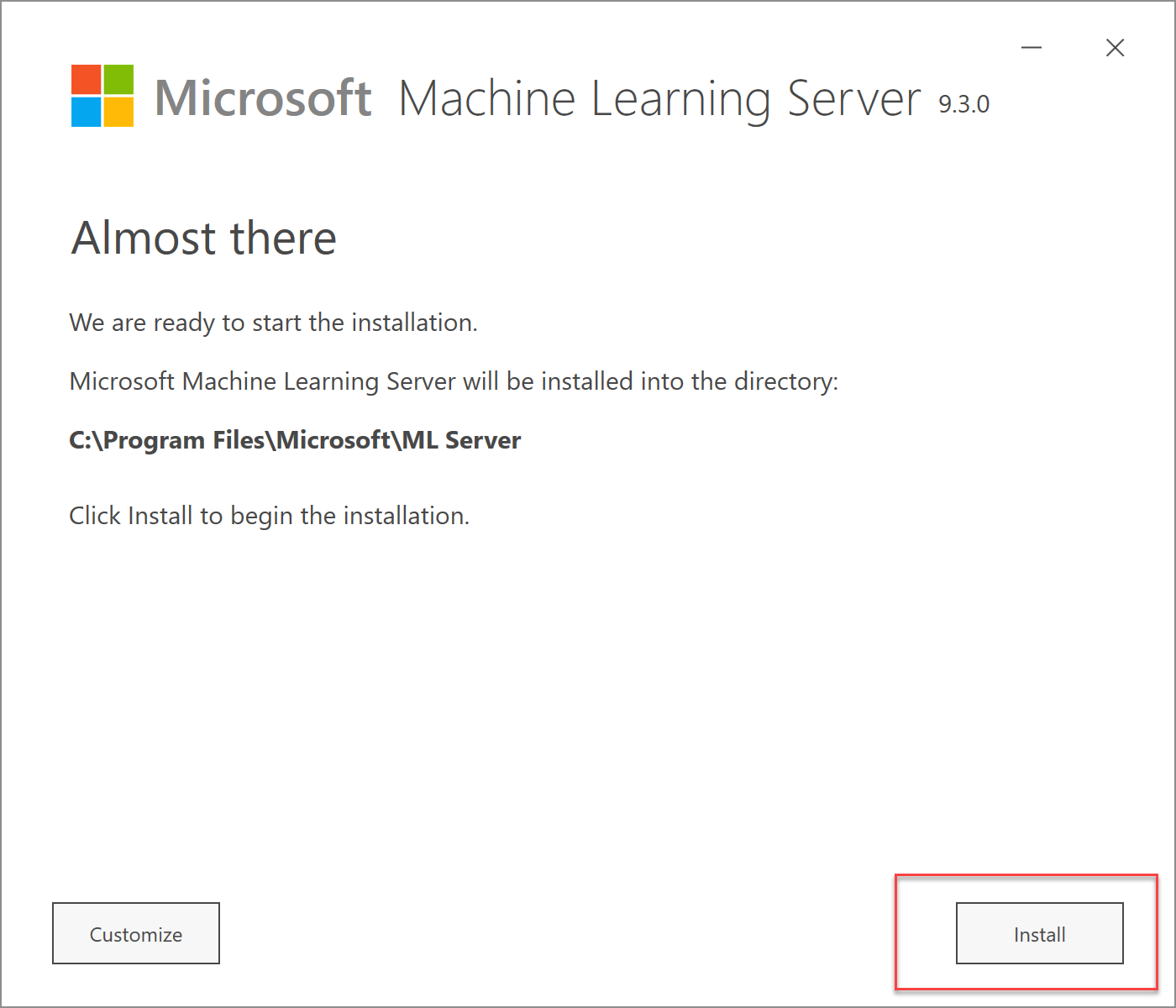

Install

Wait for Completion

Restart the Launchpad

Once you have enabled external scripts, be sure to restart the Launchpad service. To be safe, you might want to restart the SQL Server service as well.

Using Resoure Governor

Machine Learning Services can eat up CPU and memory outside of SQL Server. In heavy utilization cases, it might crowd out SQL Server and cause a degradation in experience.

To prevent this, use the Resource Governor, which can control CPU, memory, and I/O utilization for external scripts.

External Pools

Resource Governor has regular pools for controlling SQL Server behavior and external pools for controlling the Launchpad. We can create resource pools and classifier functions to segregate sessions into these pools. They can help you keep a busy server from falling over due to a poorly-timed dev query.

Demo Time

DMVs and Administration

Machine Learning Services offers a few Dynamic Management Views (DMVs) which help you gain insight on what external scripts are doing. You can also use sp_WhoIsActive to see how your external scripts are performing.

There are also files in your SQL Server logs folder, underneath an ExtensibilityLog folder, which can help you diagnose errors with R or Python integration.

Demo Time

File Cleanup

Temporary data for ML Services runs are stored in an Extensibility Data folder.

For 2016-2017, it is in %PROGRAMFILES%\MSSQL14.MSSQLSERVER\MSSQL\ ExtensibilityData\MSSQLSERVER[00-20] by default. Each run creates a subfolder in one of the container folders.

File Cleanup

When you restart the Launchpad service, it deletes these subfolders, but if you have huge numbers of them on 2016 and 2017, the delete operation may not finish in time for the service to restart.

Once an ML Services task is complete, it no longer needs anything in this subfolder so they are safe to delete, so you can create a scheduled task to clean these regularly.

SQL Server 2019 fixed this issue.

Agenda

  1. Installing ML Services
  2. Installing Packages
  3. Code Management
  4. Security and Roles
  5. Managing ML Services
  6. General Tips

What Works Well

These kinds of scenarios work really well with SQL Server ML Services:

  1. Your input data is already in SQL Server.
  2. You have longer-running processes (batch training or scoring).
  3. You can use native scoring with the PREDICT operator.
  4. You want to interact with R using .NET code.
  5. You do not need real-time interactivity.

What Doesn't Work

Avoid these scenarios:

  1. You need singleton, near real-time predictions AND cannot use native scoring.
  2. None of your core data is inside SQL Server.
  3. Your SQL Server instance is already at near 100% CPU.

RevoScaleR Versus Core R

My biases:

  1. Core R is better ceteris paribus due to portability.
  2. If you can use native scoring, RevoScaleR is completely worth it.
  3. Extended Data Frames (XDF) are sometimes a necessary evil.
  4. Some RevoScaleR models (especially neural networks) are weak.
  5. If you need parallel processing, RevoScaleR is a good bet.

Parallel Processing

sp_execute_external_script has an @parallel option to try to parallelize non-RevoScaleR operations which can work with single rows of data independent of other rows--batch predictions, for example. This can speed up certain operations considerably...but so could using RevoScaleR functions, where parallelism is on by default.

Wrapping Up

SQL Server Machine Learning Services offers the ability to operationalize R or Python effectively, though it is not without its challenges.

Wrapping Up

To learn more, go here:
https://CSmore.info/on/mlservices
